Feedback reports settings¶

Send acknowledge email¶

Send report ack¶

If False, no email will be sent to the sender of any feedback on Geotrek-rando website.

SEND_REPORT_ACK = True

SEND_REPORT_ACK = False

Suricate support¶

Suricate is the French national database gathering such reports. It exposes an API for external software to connect to. For Geotrek to connect to Suricate, you need to request two pairs of API keys allowing access.

Geotrek reports can work together with Suricate API, using one of three modes. Proceed through a mode full configuration before proceeding to the next mode.

1 - No Suricate (default)¶

This mode sends no report data to Suricate.

To initialize Report forms (Geotrek-admin, Geotrek-rando-V2, Geotrek-rando-V3) load lists for categories, activities, statuses and problem magnitude:

geotrek loaddata /opt/geotrek-admin/lib/python*/site-packages/geotrek/feedback/fixtures/basic.json

docker compose run --rm web ./manage.py loaddata /opt/geotrek-admin/lib/python*/site-packages/geotrek/feedback/fixtures/basic.json

2 - Suricate Standard¶

This mode forwards reports to Suricate, using the Standard API to post reports.

Reports are forwarded as long as we enter a value for the email address field at creation, otherwise they are kept for internal usage only.

With the Suricate Standard API mode, Geotrek acts as an entry point for feedback reports.

Reports created from Geotrek, either through Geotrek-rando or directly in Geotrek-admin, are automatically sent to Suricate.

However, synchronization only works from Geotrek to Suricate. Feedback reports created directly in Suricate or through other channels are not imported into Geotrek-admin.

With this mode:

• Feedback reports created from Geotrek-rando are visible in Geotrek-admin and sent to Suricate. They are identified with an API provider.

• Feedback reports created directly in Geotrek-admin are also sent to Suricate, but their Provider field remains empty.

• Feedback reports created directly in Suricate are not visible in Geotrek-admin.

• Qualification, assignment and follow-up of feedback reports are managed in Suricate.

This mode is therefore suitable when Geotrek is used to collect feedback reports while Suricate remains the main tool used to manage and process them.

In particular, this mode does not allow you to:

• View in Geotrek-admin feedback reports created directly from the Suricate platform or through other channels.

• Process Suricate feedback reports from Geotrek-admin.

• Assign Suricate feedback reports to managers from Geotrek-admin.

If you want to manage feedback reports directly from Geotrek-admin, consider using the Suricate management workflow.

Set your account settings in custom.py:

SURICATE_REPORT_ENABLED = True

SURICATE_REPORT_SETTINGS = {
    'URL': '<Suricate Standard API Url>',
    'ID_ORIGIN': '<Suricate origin ID>',
    'PRIVATE_KEY_CLIENT_SERVER': '<your private key client / server>',
    'PRIVATE_KEY_SERVER_CLIENT': '<your private key server / client>',
}

3 - Suricate Management (Workflow)¶

This mode allows Geotrek-admin to retrieve reports and related data directly from Suricate, using the Management API.

Unlike the Suricate Standard API mode, where reports are mainly managed and processed in Suricate, the Management Workflow is designed for organizations that want to process and manage reports directly from Geotrek-admin.

Reports can be qualified, assigned and followed up from Geotrek-admin using the Intervention and Report modules and a predefined workflow. Progress made in Geotrek-admin is then sent back to Suricate.

This mode is particularly relevant if your organization actively uses the Geotrek-admin feedback report module and wants to use Geotrek as its main tool for processing reports.

If you only need to forward reports collected through Geotrek to Suricate and want to manage them directly in Suricate, use the Suricate Standard API mode instead.

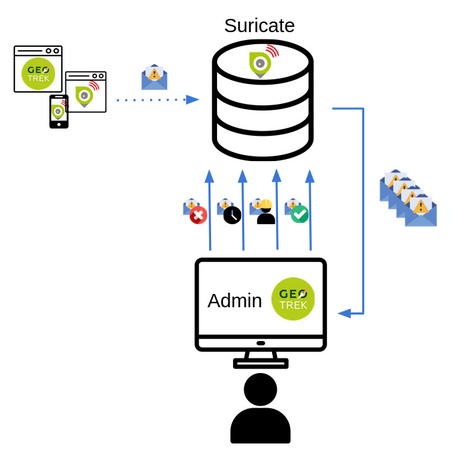

Suricate Workflow mode defines a strict process composed of several steps representing the lifecycle of a user report, from creation to closing.

A report is always characterized by a status indicating its current step in the process. Each status is displayed using a specific color on the map.

Reports¶

A report consists of the following information :

• A GPS position

• A message describing the problem

• A category : environment, security, usage conflit, signages

• A magnitude : usage is possible, difficult, or impossible

• A practice : trekking, cycling, horse-riding…

• Up to three pictures

Stakeholders and responsibility¶

This workflow defines three stakeholders categories :

• The sentinel : the person who submitted the report. They do not have a Geotrek user account nor intervene in the workflow, but they are kept updated on the processing of their report via semi-automatic e-mails.

• Supervisors : they are assigned (a) report(s) for treatment. They are tasked with planning an Intervention on Geotrek and enter information about it.

• The manager : they maintain a global view of all reports on the territory, assign reports to supervisors, handle messaging to the sentinel, and confirm reports resolution.

Any Geotrek user account can be used as a supervisor, as long as they have proper access and modification rights on both Report and Intervention modules. There can only be one Manager.

Report processing¶

Every night, Geotrek fetches new reports and updates through Suricate API. The manager receives an e-mail listing new reports (with “Filed” status). They can visualize them on Geotrek.

1 - Qualification

The manager has three options when handling a newly filed report:

• Classify : The report isn’t relevant. The manager sets the report to “Classified” and enters a message for the sentinel, explaining their choice. The report is considered closed.

• Reject treatment : The report does not involve an area or an equipment under responsibility of the workflow users, but could be handled by another member of the Suricate community. The report is excluded from Geotrek workflow but is still accessible to the community via other applications using Suricate API.

• Assignation : The manager selects a supervisor from a drop-down selector, and enters a message with instructions or further information. The supervisor receives an e-mail notifying them about the newly assigned report, along with the manager’s message. * The manager also enters a message destined to the sentinel, to notify them that the report is about to be handled. The report is set to status “Waiting”. Only after assignation can we proceed to the following steps.

2 - Planification

The supervisor logs onto Geotrek and creates an Intervention linked to the assigned report, with a planification date. The intervention has status “Plannified”. If too many days have passed between report assignation and intervention creation, the report is automatically set to “Late intervention” status, marked with color red, and the supervisor receives a reminder by e-mail.

3 - Resolution

The supervisor sets their intervention to “Resolved” status. The manager receives an e-mail notifying that a report is ready to be closed. If too many days have passed between intervention creation and intervention resolution, the report is automatically set to “Late resolution” status, marked with color red, and the supervisor receives a reminder e-mail.

4 - Closing

Following the intervention’s resolution, the manager has to confirm the report was handled and sets it to “Resolved”. They enter a message for the sentinel to inform them that the report’s processing is over. The report is considered closed.

5 - GPS relocalisation

At any point, the manager or the supervisor can re-define GPS location for the report. Relocating it outside of the district marked as workflow responsibility area causes the treatment to be rejected (see part 1 Qualification). Furthermore, it is now possible to display the report layer on other Geotrek modules, for instance to compare positions between reports and signages or treks.

6 - Reports visibility

When a supervisor logs in to Geotrek, they can only see reports that were assigned to them, whether they are currently being processed or have been solved. Both the manager and administrators can see all existing reports.

7 - Predefined messages

As we have seen above, the manager enters messages destined to the sentinel or to supervisors. These messages can be predefined in the administration interface and picked from a drop-down selector, then modified before sending. It is possible to automatically retrieve in a message the intervention date and the username of the supervisor that handled it.

Workflow configuration¶

Even though the workflow is a strict process, the following items are customisable.

Through administration interface :

• Colors for each status

• Selecting the manager

• Selecting the workflow responsibility area

• Predefined messages

Through application configuration:

• API keys to connect to Suricate

• Enabling of Workflow mode or any other mode

• Enabling/disabling status colors on map

• Duration of timers setting reports to “late” statuses

Synchronization and network losses

Communication between Suricate and Geotrek operates as follows :

• Suricate to Geotrek : new information is fetched once a night

• Geotrek to Suricate : every report update on Geotrek is immediately forwarded to Suricate

Maintaining synchronization between Suricate and Geotrek confronts us to the challenges of distributed software architecture. At any point, the connection between both applications can be lost, meaning that Suricate and Geotrek will no longer agree on a report’s status. Most of the time, this is simply due to temporary network failure. A system is in place to compensate for such failures. If a request to Suricate API fails, it is stored in the database and resent a few hours later. In case of a long term loss of connection, Django commands are available for an administrator to run some connection tests and resend stored information once connection is recovered.

For technical documentation refer to this ressource.

• Set your settings in custom.py :

SURICATE_WORKFLOW_ENABLED = True

SURICATE_MANAGEMENT_SETTINGS = {
    'URL': '<Suricate Management API Url>',
    'ID_ORIGIN': '<Suricate origin ID>',
    'PRIVATE_KEY_CLIENT_SERVER': '<your private key client / server>',
    'PRIVATE_KEY_SERVER_CLIENT': '<your private key server / client>',
}

SURICATE_WORKFLOW_SETTINGS = {
    "SURICATE_RELOCATED_REPORT_MESSAGE": "This report is not located in Workflow responsiblity area.",
    "SKIP_MANAGER_MODERATION": False
}

You can use the following command to test your connection settings:

geotrek sync_suricate -v 2 --connection-test

docker compose run --rm web ./manage.py sync_suricate -v 2 --connection-test

Load lists for activities and/or report statuses from Suricate:

geotrek sync_suricate --activities --statuses -v 2

docker compose run --rm web ./manage.py sync_suricate --activities --statuses -v 2

Load alerts from Suricate (located in your bounding box) :

geotrek sync_suricate -v 2 --no-notification

docker compose run --rm web ./manage.py sync_suricate -v 2 --no-notification

Then load extra required statuses for Reports and Interventions:

geotrek loaddata /opt/geotrek-admin/lib/python*/site-packages/geotrek/feedback/fixtures/management_workflow.json
geotrek loaddata /opt/geotrek-admin/lib/python*/site-packages/geotrek/maintenance/fixtures/basic.json

docker compose run --rm web ./manage.py loaddata /opt/geotrek-admin/lib/python*/site-packages/geotrek/feedback/fixtures/management_workflow.json
docker compose run --rm web ./manage.py loaddata /opt/geotrek-admin/lib/python*/site-packages/geotrek/maintenance/fixtures/basic.json

• Go to the configuration site and :

  • if you want to include the moderation steps (SKIP_MANAGER_MODERATION = False), select a user as Workflow Manager (/admin/feedback/workflowmanager/). Their role is to assign reports to other users.

  • select a district as Workflow District (/admin/feedback/workflowdistrict/). This zone defines the area of reponsibility for reports. Reports relocated outside of the district will be excluded from workflow.

  • create predefined emails (/admin/feedback/predefinedemail/) to notify Suricate Sentinels and Administrators. You can use intervention_end_date and supervisor in the messages’ body to automatically replace with the report’s linked Intervention date and author. The Extended Username field will be dsiplayed (see User Profile under /admin/auth/user/).

  • Make sure Users involved in the workflow have proper permissions to create and update Reports and Interventions (/admin/auth/user/)

Make sure to run these three commands daily to maintain synchronization and update reports (thanks to cron for instance) :

geotrek retry_failed_requests_and_mails
geotrek check_timers
geotrek sync_suricate

docker compose run --rm web ./manage.py retry_failed_requests_and_mails
docker compose run --rm web ./manage.py check_timers
docker compose run --rm web ./manage.py sync_suricate

Display reports with status defined colors¶

Enable report colors per status¶

Go to the Configuration site and select colors to display for each status (/admin/feedback/reportstatus/).

ENABLE_REPORT_COLORS_PER_STATUS = True

ENABLE_REPORT_COLORS_PER_STATUS = False

Use timers to receive alerts for your reports¶

To enable the alerts :

• Go to the Configuration module and set “Timer days” to some integer other than 0 in relevant statuses (/admin/feedback/reportstatus/)

• Select the “Uses timers” checkbox on reports that you wish to receive alerts for (in report update form)

• Make sure to run this commands daily to send email alerts and clear obsolete timers (thanks to cron for instance) :

geotrek check_timers

docker compose run --rm web ./manage.py check_timers

Anonymize feedback reports¶

To be compliant to GDPR, you cannot keep personnal data infinitely, and should notice your users on how many time you keep their email.

A Django command is available to anonymize reports, by default older than 365 days:

geotrek erase_emails

docker compose run --rm web ./manage.py erase_emails

Or if you want to erase emails for reports older than 90 days:

geotrek erase_emails --days 90

docker compose run --rm web ./manage.py erase_emails --days 90
